Elephant(s) in the room

Graph neural networks, embeddings, and foundation models in spatial data science

Jakub Nowosad, https://jakubnowosad.com/

2025-12-10

Disclaimer

Graph neural networks

Graph neural networks

Basic ideas:

  • Data represented as graphs (nodes + edges)
    • Nodes: spatial units (pixels, regions, locations) with features

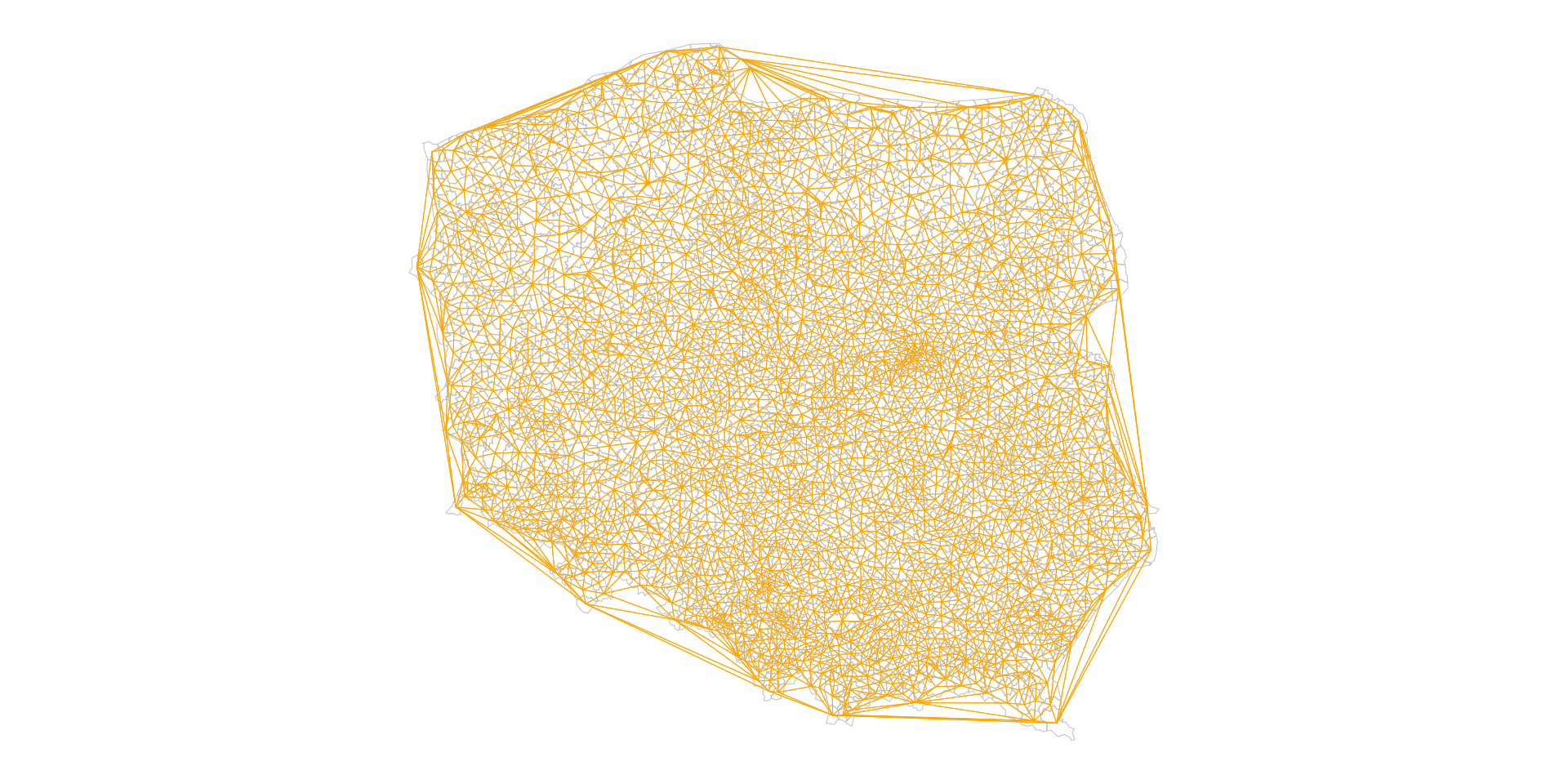

    • Edges: relationships (spatial proximity, similarity, connectivity)
  • Message Passing: nodes aggregate information from neighbors to update their representations (it is like spatial lag in regression models)

Graph neural networks

Source: https://distill.pub/2021/gnn-intro/

Types of GNNs:

  • Graph Convolutional Networks (GCNs): generalize convolution to graphs (apply a filter over a node’s neighbors)
  • Graph Attention Networks (GATs): use attention mechanisms to weigh neighbor contributions differently
  • GraphSAGE: samples and aggregates features from a fixed-size set of neighbors
  • Graph Isomorphism Networks (GINs): stack multiple layers to capture complex structures

Code example

R/gnn-torchgnn-spatial.R

Embeddings

Embeddings

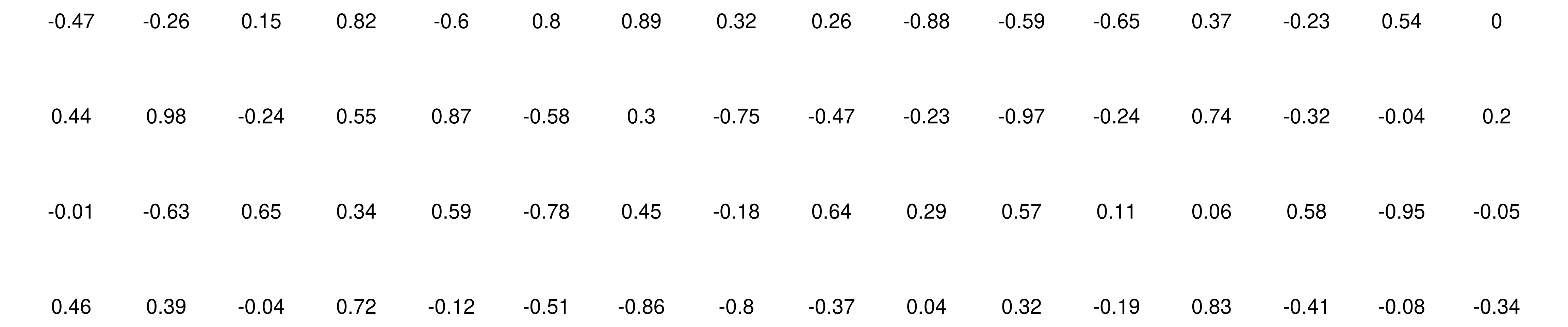

“A bunch of numbers representing an idea”

JN

Embedding are created by training models to learn compact representations that capture essential information from high-dimensional data. They are often a byproduct of foundation models.


Usage:

  • Semantic understanding: Capture complex relationships in data beyond traditional features
  • Similarity search: Identify locations with comparable environmental and surface characteristics
  • Change detection: Detect and quantify temporal variation by comparing embeddings across years
  • Unsupervised clustering: Group pixels into data-driven categories to reveal spatial structure
  • Classification: Generate thematic maps using a reduced amount of labeled training data

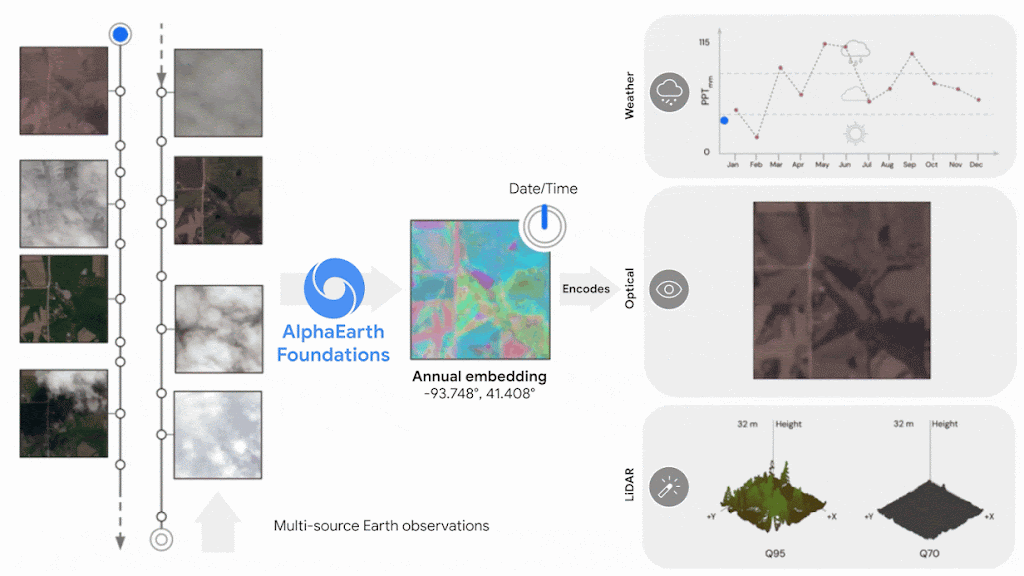

AlphaEarth Foundations

Source: https://deepmind.google/blog/alphaearth-foundations-helps-map-our-planet-in-unprecedented-detail/

Preprint: https://arxiv.org/pdf/2507.22291

Data: https://source.coop/tge-labs/aef

  • Integrates diverse geospatial data (optical, thermal, radar, 3D, elevation, climate, gravity, text)
  • Produces 64-dimensional, 10-m resolution embeddings for every year since 2017
  • Analysis-ready: no atmospheric correction, cloud masking, spectral transformations, speckle filtering, or other featurization techniques needed

Embeddings

Advantages:

  • Compression of high-dimensional data into manageable representations
  • They are not limited to a singe type of data (e.g., optical only)

Challenges:

  • Interpretability of embeddings
  • Tools and workflows for working with embeddings are still in their infancy
  • Which embeddings to use for a given task?

Code example

R/alphaearth-amtsvenn.R

Foundation models

(Geospatial) foundation models

Large, pre-trained models that learn general-purpose spatiotemporal and multimodal representations from massive amounts of unlabeled Earth observation data.

Characteristics:

  • General within the geospatial domain (support many related tasks)
  • Pre-trained on large-scale multimodal satellite data
  • Adaptable: fine-tuned or used as feature extractors with small labeled datasets
  • Zero-shot capability for some tasks

Based on Self-Supervised Learning:

  • Masked image modeling (e.g., reconstruct missing pixels)
  • Multi-modal alignment (e.g., optical <-> SAR)
  • Temporal modeling (e.g., predict future states)
  • Contrastive learning across sensors, views, seasons (e.g., distinguish different locations/times)

(Geospatial) foundation models

Fine-Tuning: Small labeled datasets are added to specialize for tasks such as:
land cover mapping, segmentation, change detection, object extraction, and more.

Embeddings: Foundation models output feature vectors reusable across tasks and regions.

Example models: Terramind, AnySat, Prithvi, AlphaEarth Foundations, etc.

Strengths:

  • Work with very little labeled data
  • Multimodal fusion (optical, SAR, DEM, time series)
  • Generalize across various tasks

Challenges:

  • Limited transferability to unseen geographies
  • Out-of-domain reliability is still poor
  • Traditional deep learning remains competitive when labeled data is abundant

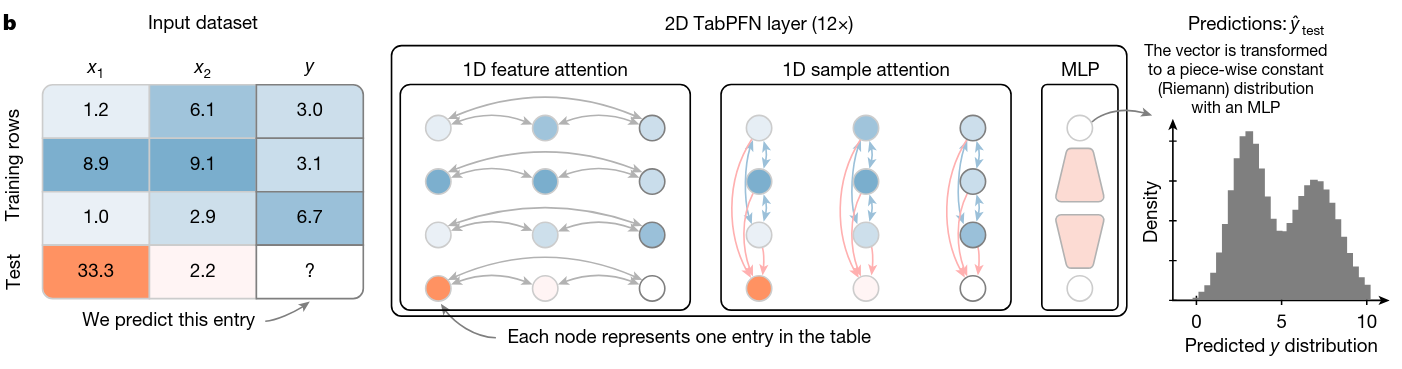

TabPFN

Transformer-based model for tabular data (not only spatial!)

  • Pretrained once; no fine-tuning required
  • Has foundation-model abilities: data generation, density estimation, reusable embeddings

How It Works:

  • Pretrained on millions of synthetic datasets generated under a wide range of priors
  • Synthetic data comes from causal models and Bayesian neural networks, including noise, imbalance, missing values
  • Learns to approximate Bayesian inference through this large synthetic pretraining
  • At inference: receives labeled and unlabeled samples, and solves the prediction task directly

TabPFN

(Stated) advantages:

  • No task-specific training: a single pretrained model aim to generalize across diverse tabular domains
  • Robustness to data imperfections: pretraining on varied synthetic datasets exposes the model to noise, imbalance, and missing values
  • Computational efficiency: prediction tasks are solved through a single forward pass without additional optimization
  • Built-in uncertainty estimation: produces full predictive distributions rather than point estimates
  • Interpretability support: compatible with SHAP-based methods for analyzing feature contributions

Scope:

  • Best for datasets with <10k rows, <500 columns, <10 classes
  • Current version: TabPFN v2.5 (Nov 2025) — supports up to 50k rows & 2k features

Paper: https://doi.org/10.1038/s41586-024-08328-6

Code example

R/tabpfn-init.R

R/tabpfn-splotdata.R
