Pixel-level supercells metrics

Source: R/sc_metrics_pixels.R
sc_metrics_pixels.Rd

Computes per-pixel distance diagnostics from each pixel to its supercell center

Usage

sc_metrics_pixels(
  x,
  sc,
  metrics = c("spatial", "value", "combined", "balance"),
  scale = TRUE,
  step,
  compactness,
  dist_fun = NULL
)

Arguments

x

The input SpatRaster used to create sc.

sc

An sf object returned by sc_slic().

metrics

Character vector of metrics to return. Options: "spatial", "value", "combined", "balance". Default: c("spatial", "value", "combined", "balance").

scale

Logical. If TRUE, returns spatial and value as scaled distances (spatial_scaled, value_scaled).

step

A step value used for the supercells If missing, uses attr(sc, "step") when available

compactness

A compactness value used for the supercells If missing, uses attr(sc, "compactness") when available. Compactness mode is read from attr(sc, "compactness_method") when available.

dist_fun

A distance function name or function, as in sc_slic(). If missing or NULL, uses attr(sc, "dist_fun") when available.

Value

A SpatRaster with one or more layers depending on metrics and scale.

spatial

Spatial distance from each pixel to its supercell center in grid-cell units (row/column index distance). If the input supercells were created with step = use_meters(...), distances are reported in meters. Lower values indicate more compact supercells. Returned as spatial_scaled when scale = TRUE.

value

Value distance from each pixel to its supercell center in the raster value space. Lower values indicate more homogeneous supercells. Returned as value_scaled when scale = TRUE.

combined

Combined distance using compactness and step. Overall distance; mainly useful for ranking.

balance

Signed log ratio of scaled value distance to scaled spatial distance. 0 indicates balance; negative values indicate spatial dominance; positive values indicate value dominance. Always computed from scaled components.

Details

If sc lacks supercells, x, or y columns, they are derived from geometry and row order, which may differ from the original centers. When using SLIC0 (set compactness = use_adaptive() in sc_slic()), combined and balance metrics use per-supercell adaptive compactness (SLIC0), and scaled value distances are computed with the per-supercell max value distance.

See also

sc_slic(), sc_metrics_supercells(), sc_metrics_global()

Examples

library(supercells)
vol = terra::rast(system.file("raster/volcano.tif", package = "supercells"))
vol_sc = sc_slic(vol, step = 8, compactness = 7)

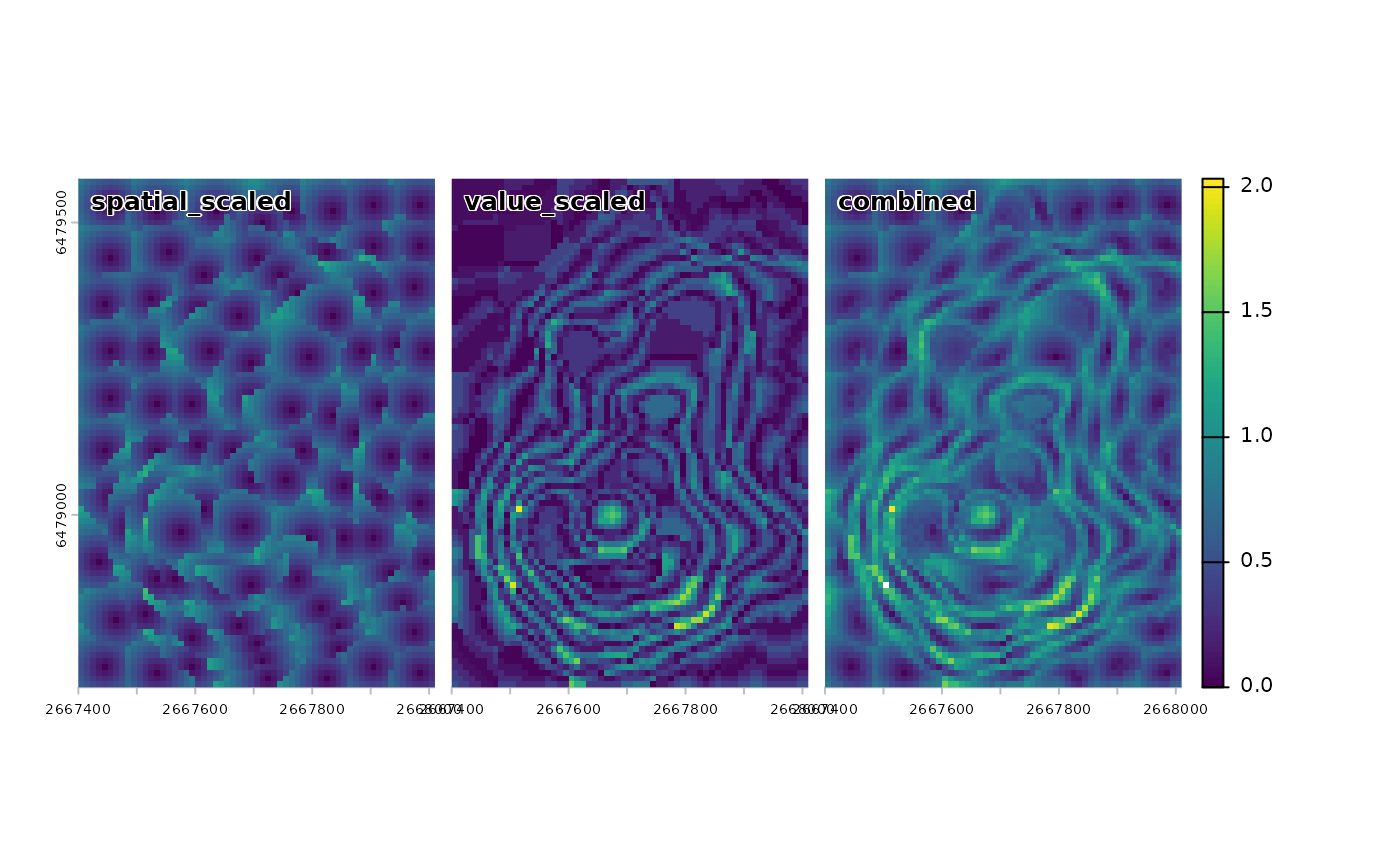

metrics = sc_metrics_pixels(vol, vol_sc, scale = TRUE)
terra::panel(metrics, nr = 1)
